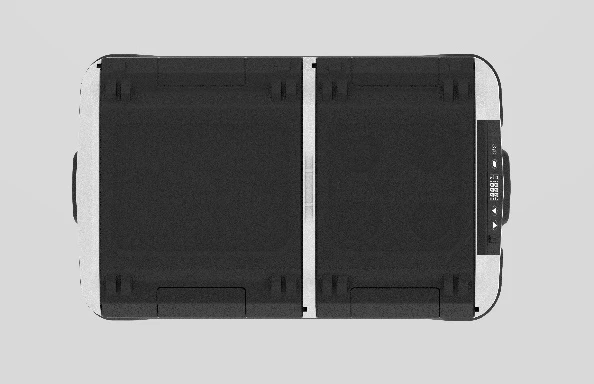

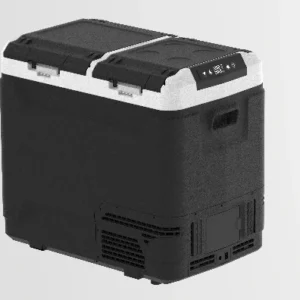

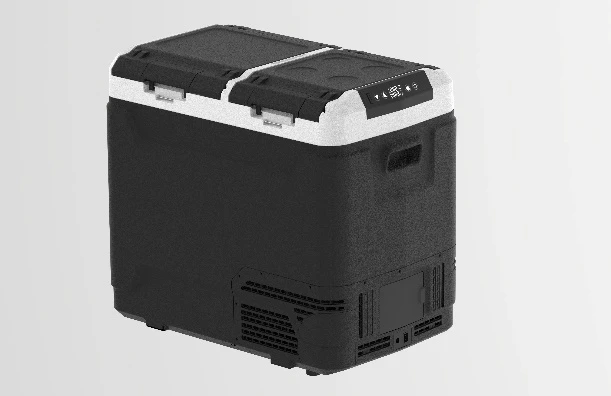

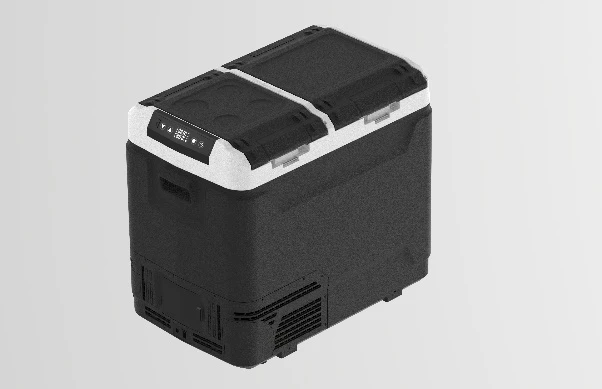

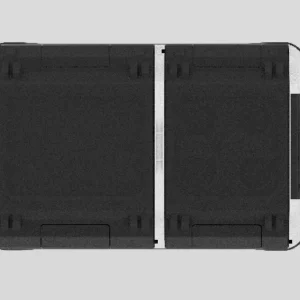

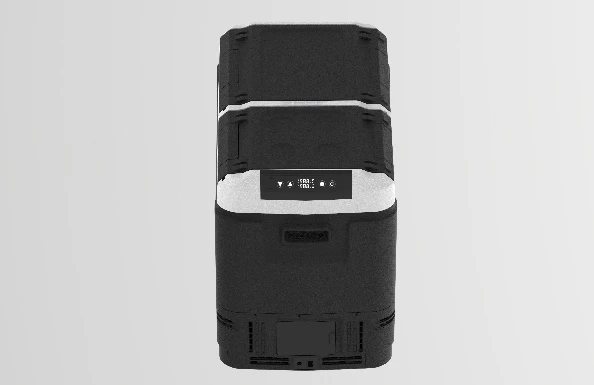

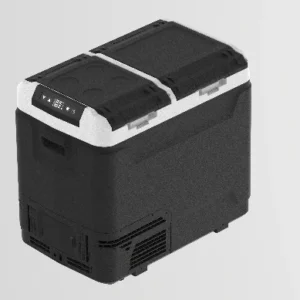

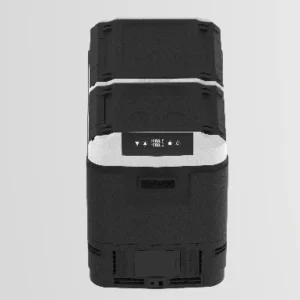

ED60-A portable car fridge

ED-A series car refrigerator is designed with dual zone dual temperature design.each zone can set temperature separately.Besides,optional built-in battery and Bluetooth can be installed also.This series is our hot sale model,loved by many outdoor activities lovers.There are 3 size available,40L,50L,60L.

Features:

1) Fast Freeze to -20℃

2) Dual zone dual temperature

3) 3 size available:40L,50L,60L

4) Anti-vibration,can tilt 30 degrees to maintain normal work

5)Bluetooth,built-in battery is available

6) Door can be removed or opened from two sides

Product parameters

Model	Description
ED60-A car fridge	Product size(mm)	674409583
	Packing size(mm)	775525650
	Color	Black
	N.W.(KG)	16.6
	G.W.(KG)	20.7
	Refrigerant	R134a(R600a optional)
	Cooling range	-20℃ ~+10℃ （32℃ ambient temperature）
	Rated voltage	DC12V/24V (AC110V-240V)
	Rated power	60W(±20%)
	Noisel level	≤45dB
	Cooling method	Compressor
	Body material	ABS
	Loading ability	20FCL:99PCS; 40HQ:270PCS

Standard accessories

DC cable(for car use, connect on cigarette lighter)

AC adapter(for home use)

Application

Multiple functions on one model.Dual zone dual temperature setting can meet your different cooling needs at the same time.Built-in battery allows the refrigerator to continue working even when disconnected from external power supply.They are widely applied for portable transportation such as car driving/outdoor gathering/4×4 off-road/cold chain transportation/fishing/boating/trucking,etc.

Note:

1. When using the car refrigerator for the first time, clean the inside of the box and wipe off the excess water droplets.

2. The car refrigerator is the same as the household refrigerator. Magnetic and corrosive objects cannot be placed in the box.

3. The car refrigerator also has a cooling air outlet. Be careful not to block the air outlet when placing it.

4. It is best to be equipped with a power converter to achieve the correct use of the refrigerator at home and in the car.

5. Note that the inclination angle of the compressor car refrigerator should not exceed 30°, so as to avoid the compressor downtime.

6. When using the car refrigerator, you must read the instructions carefully to clearly understand the refrigeration temperature, working environment, voltage and other requirements of the car refrigerator.
