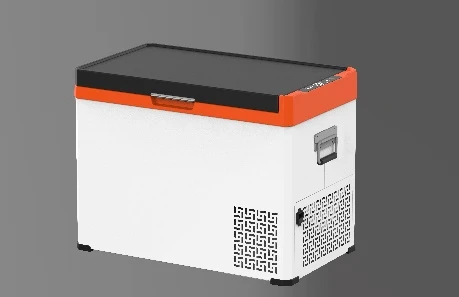

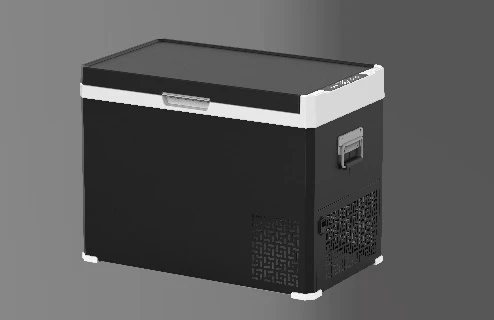

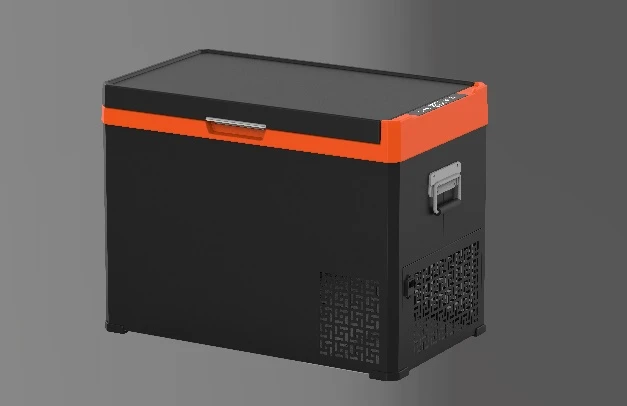

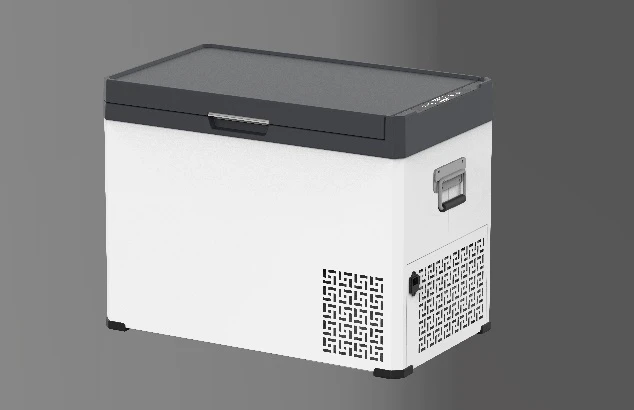

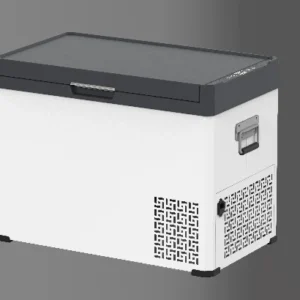

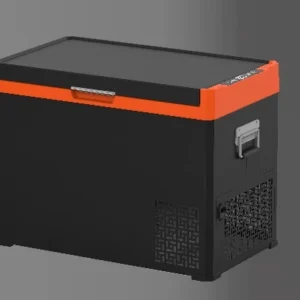

EC40 portable car fridge

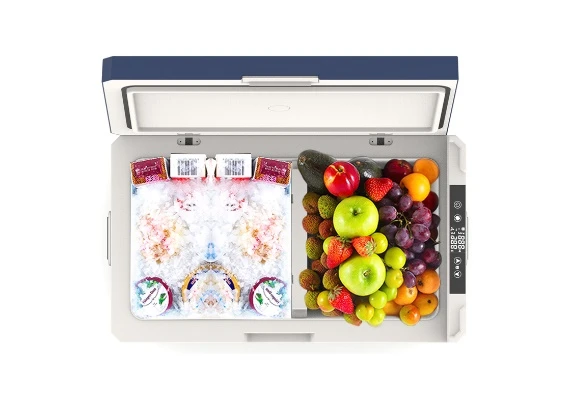

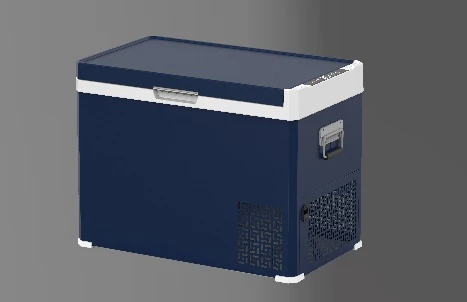

EC series car refrigerator is designed with metal case,single zone, It can be updated to a dual zone with a solid partition which can meet different temperature demand.Temperature setting ranges from -20℃ to +10℃.We adopt popular dark blue color for the the body.There are 3 size available for this series,30L,40L,50L,suitable for a family and a 3-5 person group to use for their outdoor activities..

Features:

1) Fast Freeze to -20℃

2) Single zone design

3) 3 size available:30L,40L,50L

4) Anti-vibration,can tilt 30 degrees to maintain normal work

5)Metal case, crash-resistant, not easily deformed

6)Customized color is acceptable with MOQ requirement

Product parameters

Model	Description
EC40 car fridge	Product size(mm)	594349441
	Packing size(mm)	655410520
	Color	Dark blue / customized
	N.W.(KG)	14.5
	G.W.(KG)	17
	Refrigerant	R134a(R600a optional)
	Cooling range	-20℃ ~+10℃ （32℃ ambient temperature）
	Rated voltage	DC12V/24V (AC110V-240V)
	Rated power	45W(±20%)
	Noisel level	≤45dB
	Cooling method	Compressor
	Body material	Metal
	Loading ability	20FCL:200PCS; 40HQ:500PCS

Standard accessories

DC cable(for car use, connect on cigarette lighter)

AC adapter(for home use)

Application

Simple and elegant appearance design,EC series are loved by young people.They are widely applied for portable transportation such as car driving/outdoor gathering/4×4 off-road/cold chain transportation/fishing/boating,etc.

Note:

1. When using the car refrigerator for the first time, clean the inside of the box and wipe off the excess water droplets.

2. The car refrigerator is the same as the household refrigerator. Magnetic and corrosive objects cannot be placed in the box.

3. The car refrigerator also has a cooling air outlet. Be careful not to block the air outlet when placing it.

4. It is best to be equipped with a power converter to achieve the correct use of the refrigerator at home and in the car.

5. Note that the inclination angle of the compressor car refrigerator should not exceed 30°, so as to avoid the compressor downtime.

6. When using the car refrigerator, you must read the instructions carefully to clearly understand the refrigeration temperature, working environment, voltage and other requirements of the car refrigerator.
